1、主机Basic Machine：
l DAISY系列测量机采用国际先进的有限元分析设计方法，使其具有机械结构刚性强、几何误差小，具有高精度、高性能和高稳定性的优点。
Adoption of advanced F.E.M. (finite element method) makes it have a strong rigidity, small geometry error, high precision, high performance and high stability.
l 机械整体结构采用刚性结构好、质量轻的全封闭框架移动桥式结构。其结构简单、紧凑、承载能力大、运动性能好。
The mechanical overall structure adopts strong rigidity, light weight and close frame movable bridge structure, which is simple, compact and has strong loaded capacity and good moving performance
l 固定优质花岗岩工作台，使其具有承载能力强、装卸空间宽阔、便捷。
Granite fixed workable ensures strong heavy load, expanse and simplicity for assembly and unassembly.
l Y向导轨采用燕尾式，定位精度高，稳定性能好。
Y axis guideway adopts dove tail type, which has high precision and good stability.
l 三轴采用优质花岗岩，热膨胀系数小，三轴具有相同的温度特性，因而具有良好的温度稳定性、抗实效变形能力，刚性好、动态几何误差变形小。
Three axis’s adoption of quality granite guarantees small coefficient in thermal expansion and uniform temperature specialty so that it serves to excellent stability in temperature, good anti-transmogrification, strong rigidity and small geometrical error in motion.
l 三轴均采用自洁式预载荷高精度空气轴承组成的静压气浮式导轨，轴承跨距大，抗角摆能力强，阻力小、无磨损、运动更平稳。
Three axis’s adoption of quiescent air pressure air-bearing guide way, comprised of air bearings which are self-cleaning, pre-loading and high precision, guarantees the large span of bearings, strong anti-sways, small resistance, no abrasion and stable motion
l 横梁采用精密斜梁设计技术（已获专利），重量轻、重心低、刚性强，动态误差小，确保了机器的稳定。
Crossbeam’s adoption of precise designing technology of inclined girder (patent) guarantees the machine’s lightweight, low center of gravity, strong rigidity and small error in motion so that the stability of the machine is strengthened.
l 采用国外进口反射式金属带状光栅计量系统，与大多数工件具有相近的热膨胀系数，确保了良好的重复精度。
Adoption of world famous reflecting metal tape measuring scale system, which has a close thermal expansion coefficient with most work piece and assure a good repeatability.
l 驱动系统采用国际知名品牌的高性能直流伺服电机、齿形带传动装置，确保传动更快捷、更精准、运动性能更佳。
Drive system adopts world famous high performance DC servo drive system and dentiform tape gearing, which guarantee the drive’s fastness, precision and perfect movement.
l Z轴采用气缸平衡装置，极大的提高了Z轴的定位精度及稳定性。
Z-axis adopts cylinder equilibrator system, which improves orientation precision and stability greatly for Z axis.
l 控制系统采用德国知名的SB专用三坐标数控系统，具有国际先进的上下位机式的双计算机系统，从而极大地提高系统的可靠性和抗干扰能力，降低了维护成本。
The control system’s adoption of the exclusive SB system with high integration from Germany strengthens the system’s capability, reliability and anti-jamming performance by a large extent.
l 软件采用具有独立知识产权的、功能强大的AC-DMIS测量软件包，其完善的测量功能和联机功能，为用户提供了完美的测量解决方案。
Software adopts self-owned intellectual property and strong function AC-DMS software. With its perfect measuring and online function, it will meet customer’s challenging demand with a comprehensive measurement solution.
2、技术指标Technical Index：
01：测头系统/ Probe System：

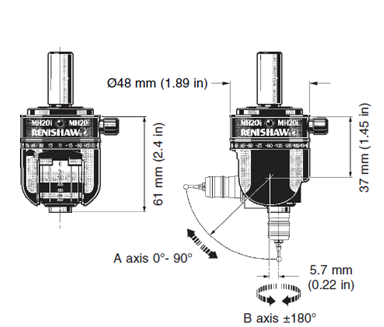

RENISHAW MH20i手动双旋转可分度测头系统manual double-rotary probe system
技术参数Technique parameter：
测头部分probe TP20测力模块一个include one TP20 force module
感应方向Sense direction ±X ±Y ﹢Z
测头座分度机构Total angular movement：
绕 A轴A axis（水平轴） 范围 0°～90°最小步距15° 0° to 90° in 15° steps
绕B轴B axis（铅垂轴） 范围±180°最小步距15° 0° to ±180° in 15° steps
空间位置Total number of positions 168个
重量Weight 210g
02：测针组RENISHAW Stylus Kit（mm）：
测针（mm）：
订货号 | 型号 | 材料 | 测球直径 | 长度 | 杆直径 | 有效长度 | 数量 |
A-5003-0033 | PS48R | 红宝石测球/碳化钨杆 | 1 | 20 | 0.8 | 12.5 | 1 |
A-5000-3603 | PS2R | 红宝石测球/不锈钢杆 | 2 | 20 | 1.4 | 14 | 1 |
A-5000-4160 | PS16R | 红宝石测球/不锈钢杆 | 3 | 20 | 1.5 | 17.5 | 1 |
A-5000-7807 | PS8R | 红宝石测球/不锈钢杆 | 2 | 10 | 1 | 6 | 4 |
A-5000-3609 | ―― | 红宝石测球/不锈钢杆 | 2 | 16.5 | 1.4 | 12 | 1 |
测针加长杆（mm）：
订货号 | 型号 | 材料 | 直径 | 长度 | 数量 |
M-5000-3648 | SE5 | 不锈钢杆 | 3 | 20 | 1 |
测针中心座：
订货号 | 型号 | 材料 | 中心尺寸 | 有效长度 | 数量（个） |
A-5000-3627 | SC2 | 不锈钢杆 | 7 | 7.5 | 1 |
03：校准器Datum Tool：标准球Datum BallΦ25及万向球座Kit T5 1套/set
04：性能指标Performance Data:长度计量系统Length Measuring System：英国RENISHAW反射式金属带状光栅尺/reflection metal-tape grating scale.
分辨率Resolution： 0.5mm；
测量范围Measuring Range X×Y×Z: 500mm×600mm×400mm
示值误差Measuring Erro： MPEE≤2.2＋L/300mm
探测误差Probing Error： MPEP≤2.2mm
3、环境要求Environment Requirement
01：温 度Temperature：20+2℃ 1℃/h 1℃/m 2℃/24h
02：湿 度Humidity： 40%-70%
03：电 源Power Supply：220V+10%, 50HZ-60HZ
04：气 源Air Supply：≥0.55MPa
4、控制系统Control System：德国SB公司CNC系列三坐标测量机专用控制系统
Well known CNC series SB controller system for CMM.
———德国先进技术和中国理念的完美结合
International famous CMM controller system
———性能卓越、超强的抗干扰能力
Excellent functionality and super powerful anti-interference capability
l 德国知名三坐标测量机专用控制系统
German well-known SB control system for CMM
l 采用国际先进的上、下位机式的双计算机控制系统
Internationally advanced up-down dual computers control system
l 支持多种测头系统：触发测头、扫描测头、光学CCD测头、激光测量系统
Support of multiple probe systems: touch-trigger probe, scanning probe, optical CCD probe, laser measuring system.
l 内置控制技术软件，可实现四轴伺服驱动及运动状态优化调整
Software of Built-in control technology to realize the servo drive for 4 axis and optimal regulation of motional status and adjustment of servo parameter to make automatic optimization
l 支持RENISHAW全系列测头连接系统PICS
RENISHAW probe controller embedded to support the full series connected with PICS.
l 内含智能扫描控制系统。可实现空间轮廓曲线、曲面自动扫描控制
Intelligent scanning control system embedded to achieve the automatic scanning control of spatial contour curve/surface
l 内部采用先进的连续运动轨迹插补算法，可进行测量轨迹的优化整合，自动生成合理的测量运动轨迹
Adoption of advanced interpolation algorithms for continuous motion track to optimize the measuring track and automatically generate logical measuring motion track
l 采用多种控制模式，提供多种安全保障功能
Multiple control modes to provide multiple safety functionality
l 具有故障自诊断纠错功能
The functional self-diagnosis and self-correction for malfunction
l 具有内部温度监控系统
Monitoring system of interior temperature
l 内部通讯采用多种接口标准，便于计算机联网升级
Multiple interface standards for intercommunication to ease computer’s network and upgrade.
l 配置专业化的三轴联动操纵杆及按键面板的操纵盒
Specialized three-axis-linked joystick and the operation box with button panel
l 输入、输出、光隔离具有良好的电气可靠性、稳定性、安全性及超强的抗电磁干扰能力，符合欧洲电气安全标准
Favorable electrical reliability, stability, security and super powerful capability of anti-interference and against electromagnetism in conformity with European EC standard.
5、计算机系统Computer System
01：DELL计算机Computer ：
CPU：双核Dual core 2.5G
操作系统Operating System：Windows XP +SP2
内 存Memory：1G
硬 盘Hard disc：320G
显 卡Video Card：TNT/GERFORCE
显卡驱动推荐使用以下版本The drive of Video card recommended： WINXP VERSION 30.82
图形库Graphic Base：OPENGL（操作系统提供Provided by Operating System）
显示器Display： 19″液晶显示器LCD display
02：打印机 Printe： HP A4彩色喷墨/Color inkjet
03：气路连接件Pneumatic connecting parts
管接头Cable connector SPCF-10-02+SBT-10-02 1套/set
紧固胶管用卡箍Clipper φ16~φ25 1套/set
气管Air cable φ10 1.5m
6、软件系统Software System：AC-DMIS EXT测量软件包/Measuring Software package ：
AC-DMIS 是AEH测量设备股份有限公司开发的新一代通用三维测量软件包。以通过PTB认证的严谨算法为核心，以体现当今国际上专业三维建模、数字模拟及CAD/CAM软件开发最先进理念的高效、稳定的开发平台为基础，融合AEH测量设备股份有限公司的创新精神和在坐标测量领域的丰富经验，AC-DMIS 通过其简便易用的操作界面、丰富完善的功能、无限的可扩充性及ISO标准的公差评判为各界各种各样的几何量测量问题提供了有效、便捷、完美的解决方案。几千家的客户群就是AC-DMIS强大测量功能软件成功的见证者。
AC-DMIS, the new powerful generation of universal 3D measurement software researched by Xi’an high-tech industrial metrology CO.,Ltd. Its core precise arithmetic is fully certified by PTB certification, the software’s researched platform is from the most advanced, professional 3D model making, digital simulation CAD/CAM software and combines AEH innovation sprite and abundance experiences of CMM field, Friendly, simple and convenience user interface, perfect functions, unlimited extension ability and ISO tolerance evaluation standard offers fast, accuracy, effective, high-efficiency solution for all kinds metrology measurement requirements. Thousands of customer group are the best witness to demonstrate the success of comprehensive AC-DMIS.
AC-DMIS.EXT的功能main feature:
l 支持多种控制系统如，UCC、PANTEC、SB等；
Support for multi-controller systems, UCC, PANTEC, SB etc;
l 支持多种测头，如：触发式、连续扫描式、影像式和线激光等，方便进行多种形式的测量；
Probe system, trigger mode, continuous scanning mode, image mode and laser scan, etc, to satisfy all measurement requirements;
l 模块化的软件结构，具有无限的加挂各种专用软件（齿轮、叶片、凸轮、蜗轮蜗杆等）及进行二次开发的可能；
Modularized software structure with the capability to add special software (gear, vane, cam, warm/wheel etc.) and secondary development.
l 具有简洁直观的操作界面及可追溯的清晰的操作流程记录；
With brief operation interface and traceability legible operation process track record;
l 具有点、线、面、圆、圆柱、圆锥、椭圆、圆槽、方槽、圆环、球、曲线等多种基本几何元素的测量及评定；
Geometric measurement and evaluation: point, line, plane, circle, cylinder, cone, ellipse, round slot, rectangle, torus, sphere, curve and surface, etc;
l 通过对元素的构造、转换、再现、投影、存储/调用及相关计算，可实现对已测元素进行后续操作，得到设备不同状态的转换结果、角度、距离等；
Element construction, transform, reappear, projection, store, recall and relation calculation to realize following operation of measured elements and obtain result, angle, distance, etc, under different machine status;
l 强大的形位公差测量功能涵盖了所有的相关内容及评定方式，测量内容包括直线度、平面度、圆度、圆柱度、轮廓度、垂直度、平行度、倾斜度、同轴度、同心度、对称度、位置度、跳动误差测量、径向圆跳动、径向全跳动、端面圆跳动、端面全跳动；公差规则包括独立原则和相关原则等；
Powerful GD&T function includes all relative content and its evaluation items, Straightness, Flatness, Roundness, Cylinder form, profile form, perpendicularity, Parallelism, Angularity, Coaxiality, Concentricity, Symmetry, Position, Axial runout, Radial runout, Total axial runout, Total radial runout; tolerance regulation includes RFS, LMC,MMC, etc.
l 不同工件坐标系的建立方式可满足各种工件的测量和评定，有适合于箱体类零件的工件位置找正，有适合于复杂曲面类的RPS找正，也有适合于模具检具类的三个中心点找正及曲面321找正等；
Multi-coordinates system alignment methods satisfy required measurement and evaluation for different parts, “part coord-sys” mode is used for shaped box part alignment; “RPS alignment” mode is mainly for complex surface part alignment, and “3 center point alignment” and “surface 321 alignment” modes are suitable for model part alignment;
l 支持多语言的随意切换，公、英制的选择，极、直坐标系下测量的选择等；
Support for instant switch of multi-language, length unit(mm, inch); coordinate system (Cartesian or polar) etc;
l 具备清晰的树形程序编辑器和方便快捷的字符式程序编辑器，通过智能化的自学习测量，即使不懂编程亦能应用自如；
Intellectual self-study program: with clear tree editor and convenient character editor, even new learner will feel like using with it;
l 简捷直观的测量路径显示功能，以便判断运动轨迹是否安全合理，测量过程是否干涉；
Visible measuring path display: for safety and anti-collision prediction before starting measurement;
l 可实现手动测量与参数化的特征测量之间的无缝切换；
Instant switch between manual measurement and CAD feature auto measurement;

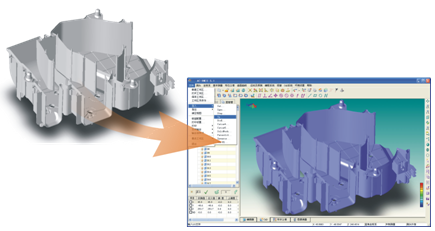

l 具有CAD三维模型（SAT、IGES、STEP）的导入与转换功能；可用鼠标直接在模型上拾取基本几何元素、线曲面等元素，自动生成程序并完成特征测量；
3D CAD model (SAT、IGES、STEP) import and transform; use mouse to pick geometric element, curve, surface, etc. from model directly, and create measuring program and complete feature measurement automatically;
l 基于三维模型的脱机编程、模拟测量和同步测量的实现，使编程更加直观；
Offline programming, simulation measurement and synchro measurement which based on 3D model, makes programming more intuitional; (Ext,Std);

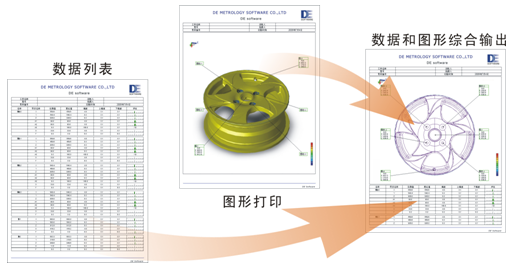

l 具备多种输出格式，如：word、excel（Microsoft office或Open office）、bmp、pdf、iges、step、dat、文本文件；
Multi-output formats: word, excel (Microsoft office或Open office), bmp. Pdf, igs, step dat and text document;
l 提供客户自定义样式的报告，方便客户对测量结果进行统一管理；
Support customized report format, satisfy customer special needs and convenient customer for result’s management;
02：服务承诺For Service Quality：
l 如我公司接到用户设备故障请求服务电话，在2小时内予以响应，如有必要在24小时内派技术人员赴现场解决问题。
If we get telephone request services about equipment failure from users, we will response to the request in 8 hours, if necessary we will send technical engineer to the customer’s site to solve problems within 24 hours.
